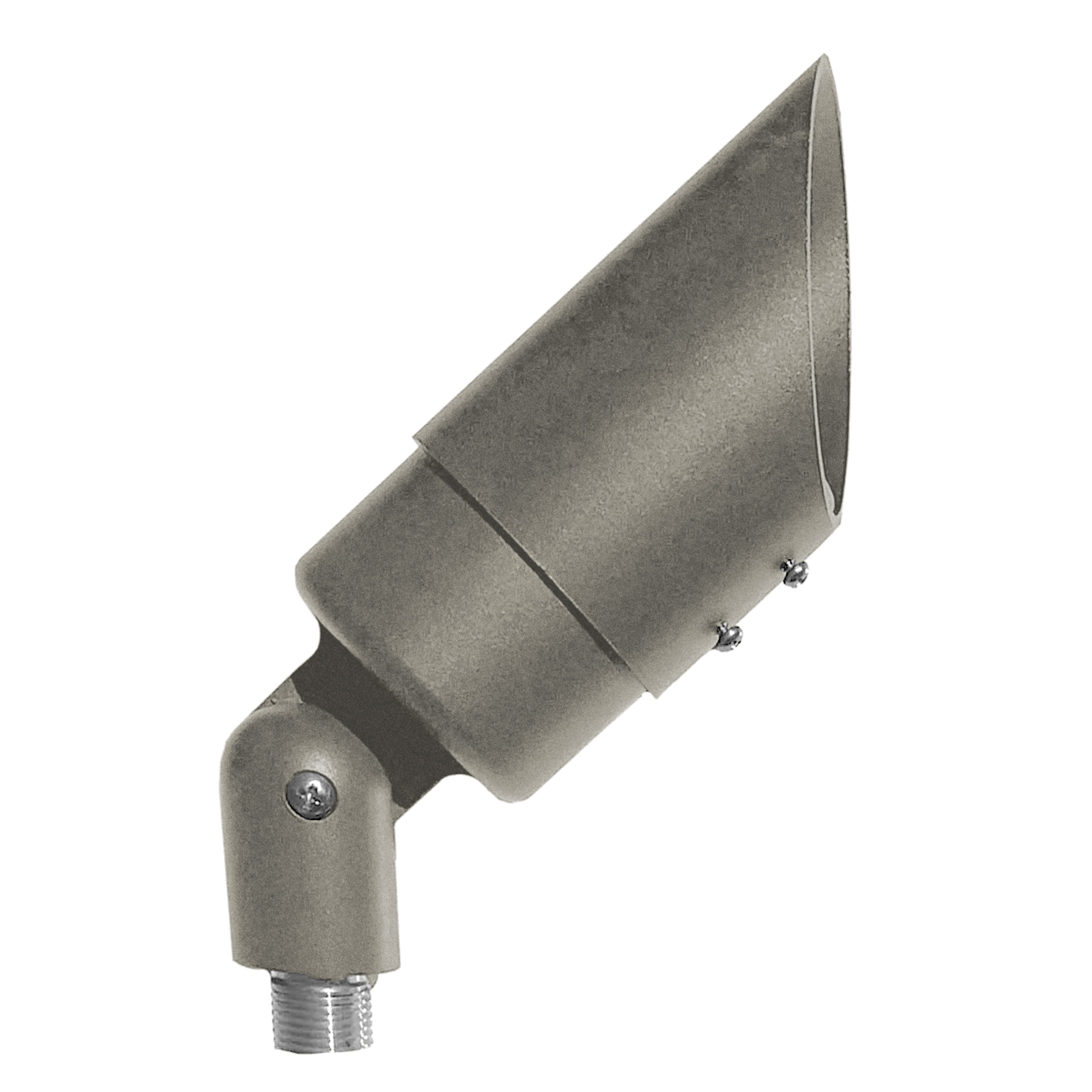

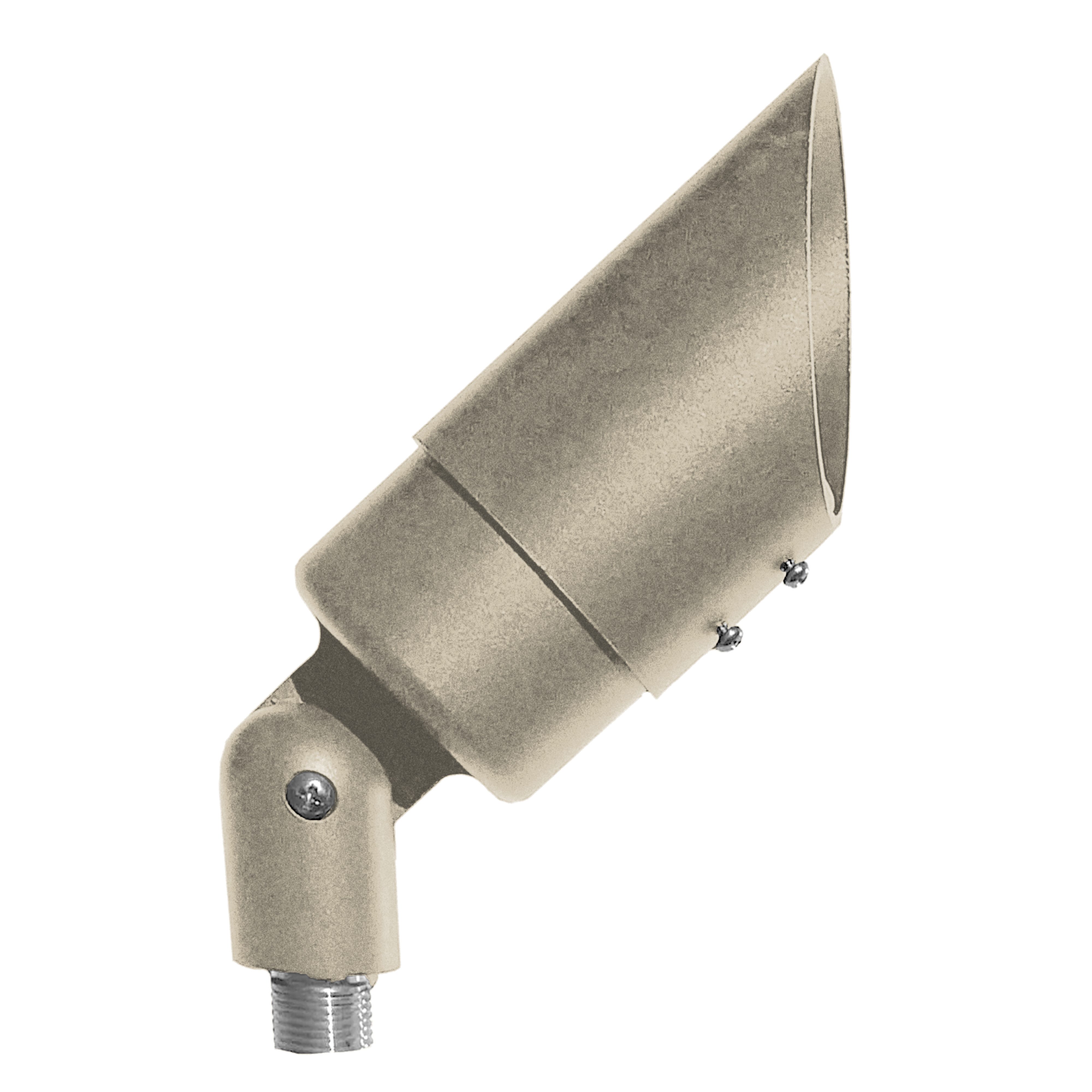

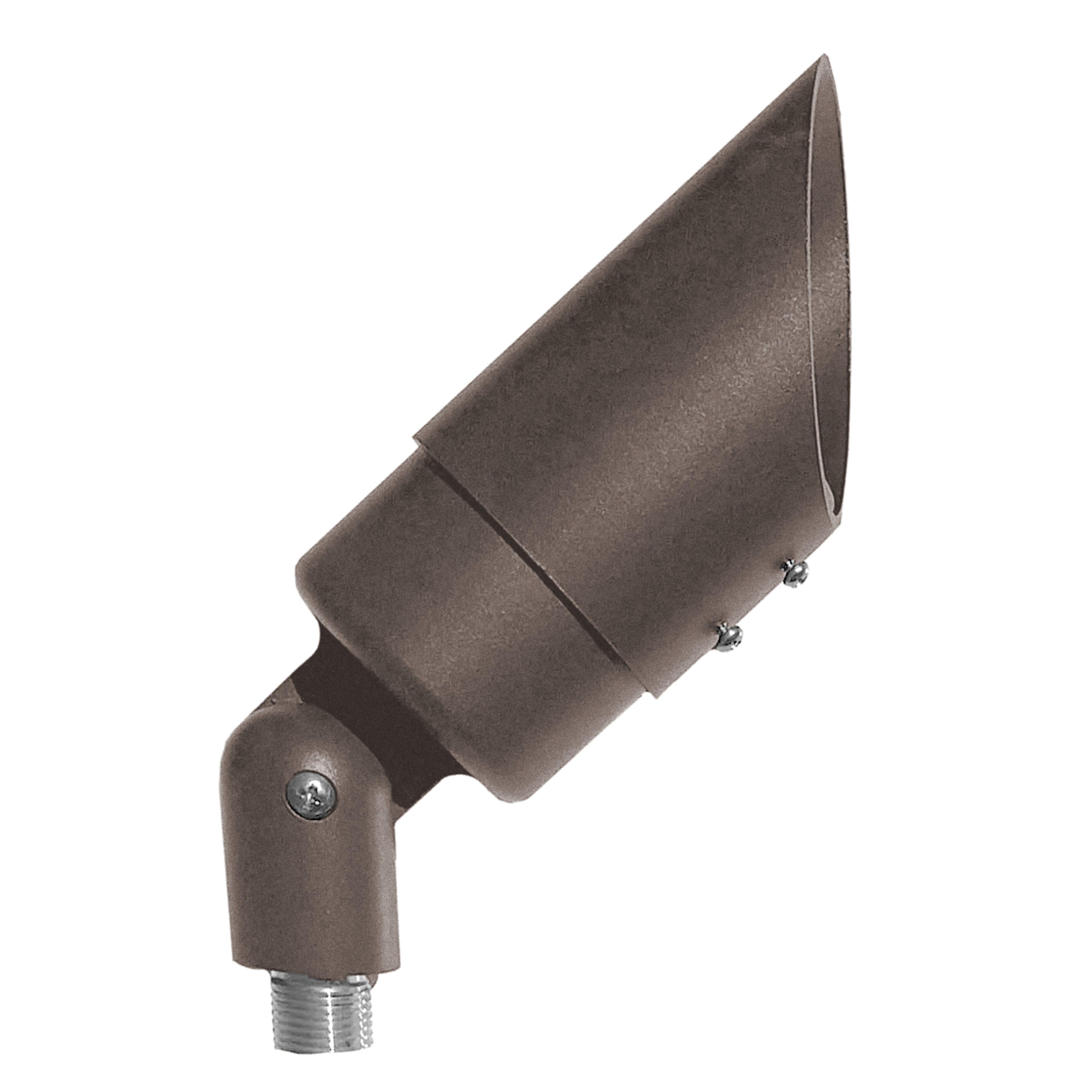

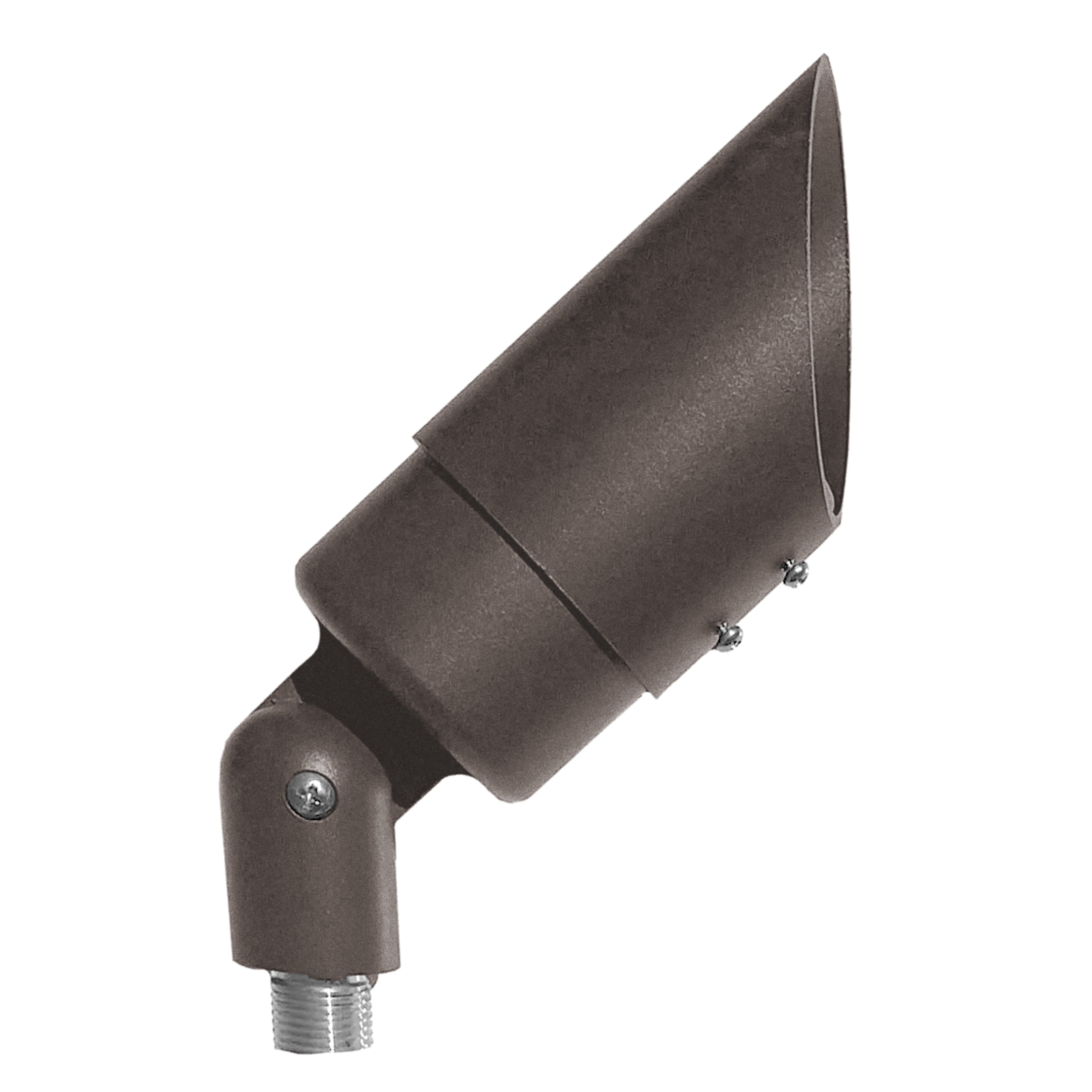

UNI MR16 Flood Series - A224 Architectural Lighting
The TouchStone UNIFlood series features a modular fixture design that enables different mounting options. The UNIFlood series allows for the use of narrow to flood-pattern beam widths, LEDs and choice of 3-watt, 5-watt or 7-watt to customize and maximize desired lighting effects.
UNI Flood MR-16 replacement bulbs
For those spots where flexibility and power are important to your illumination needs, our UNIFlood series offers a versatile option. Architectural landscape lighting offers homeowners opportunities to bring light to spaces where it’s needed most, whether you need to illuminate a sign or want to spotlight a specific design feature like a prized tree or flagpole for a dramatic effect. These unobtrusive fixtures are designed to blend with existing architecture. Sleek, stylish and extremely versatile, the USA made UNIFlood series comes in a variety of finishes to match the exterior of your home. With either a stake mount or surface-mount option, these versatile, attractive fixtures can go anywhere you need dramatic, powerful lighting. The optional risers allow them to be mounted nearly anyplace you need light, and the surface mount provides attractive, secure attachment to a wall, post, or other surface. The adjustable visor means light can be directed to where you need it most, and the swivel feature allows for a full range of adjustment. This durable, elegant fixture provides either uplighting or downlighting, depending on your need. When you want to create a dramatic effect or spotlight a specific feature of your landscaping plan, the UNIFlood series is an excellent choice. Let our trained team work with you to design the lighting package that best suits your property and needs. Call to schedule your initial consultation today.
UNIFlood Features:
- 12 volt AC/DC
- Aluminum housing with powdercoat finish
- Adjustable visor
- Interchangeable premium grade LED MR16 lamp
- Stainless steel fasteners
- Removable domed glass lens
- 8” SuperStake
- 36” fixture leads
- Silicone gaskets
- Accepts 1/2" NPT hardware
Dimensions: 2.5” diameter x 6” tall
Warranty: Lifetime limited on the fixture and a 3 year warranty on the LED lamp Applications:
- Downlighting
- Uplighting
- Accenting trees
- Architectural
- Sign washing
Options: TK212 tree kit, FMB2 surface mount, FRC riser collar, 15” risers and RubberMount SuperStake
Additional information
Finish Color: | ARCHITECTURAL BRONZE, BLACKTEX, REDROCK, SANDSTONE, BRONZETEX |
---|---|
Instructions: | https://www.touchstonelights.com/wp-content/uploads/2018/02/Instructions-A212-Web.jpg |
Bulb Wattage | 3 Watt, 5 Watt, 7 Watt |
Beam Angle | 30 °, 60°, 100° |
Instructions

Small Flood Instructions
Specification Sheet
USA MR16 Flood – A224 Architectural Lighting
New for 2022, the USA MR16 Flood series! Made right here in Long Lake, MN USA
The TouchStone USA Flood series features a modular fixture design that enables different mounting options. Our downlighting fixtures are pre-wired with cable ties for easier installation. The Small Flood series allows for the use of narrow to flood-pattern beam widths, LEDs and choice of 3-watt, 5-watt or 7-watt to customize and maximize desired lighting effects.
For those spots where flexibility and power are important to your illumination needs, our USA Flood series offers a versatile option. Architectural landscape lighting offers homeowners opportunities to bring light to spaces where it’s needed most, whether you need to illuminate a sign or want to spotlight a specific design feature like a prized tree or flagpole for a dramatic effect. These unobtrusive fixtures are designed to blend with existing architecture.
Sleek, stylish and extremely versatile, the USA Flood series comes in a variety of finishes to match the exterior of your home. With either a stake mount or surface-mount option, these versatile, attractive fixtures can go anywhere you need dramatic, powerful lighting. The optional risers allow them to be mounted nearly anyplace you need light, and the surface mount provides attractive, secure attachment to a wall, post, or other surface. The adjustable visor means light can be directed to where you need it most, and the swivel feature allows for a full range of adjustment.
This durable, elegant fixture provides either uplighting or downlighting, depending on your need. When you want to create a dramatic effect or spotlight a specific feature of your landscaping plan, the USA MR16 Flood series is an excellent choice. Let our trained team work with you to design the lighting package that best suits your property and needs. Call to schedule your initial consultation today.
USA MR16 Flood Features:
- 12 volt AC/DC
- Aluminum housing with powdercoat finish
- Adjustable visor
- Interchangeable premium grade LED MR16 lamp
- Stainless steel fasteners
- Removable domed glass lens
- 7” SuperStake
- 36” fixture leads
- Silicone gaskets
- Accepts 1/2″ NPT hardware
Dimensions: 2.5” diameter x 6” tall
Warranty: LIFETIME limited housing warranty on the Flood light and 3 year warranty on the LED lamp
Applications:
- Downlighting
- Uplighting
- Accenting trees
- Architectural
- Sign washing
Options: TK210 tree kit, FMB3 surface mount, FRC riser collar, 8”, 12”, 16”, and 20” risers and RubberMount SuperStake
