Additional information
Finish Options | Powder Coat, Brass Patina NO Powder Coat |
---|---|
Powdercoat Fixture Finishes | Brass Patina, Bronze Texture, Red Rock, BlueStone, Oil Rub Bronze, Mock Rock, Sandstone |
Bulb Wattage | 10 Watt, 13 Watt, 17 Watt, 10 Watt RGBW |
Bulb Beam Angle | 38 °, 60 °, 120° |
Dimensions: | 6-1/4" w x 4-1/2" h (Oval shaped) |
Specification Sheets
PDF Download: Fixture Specs A236 Brass Flood

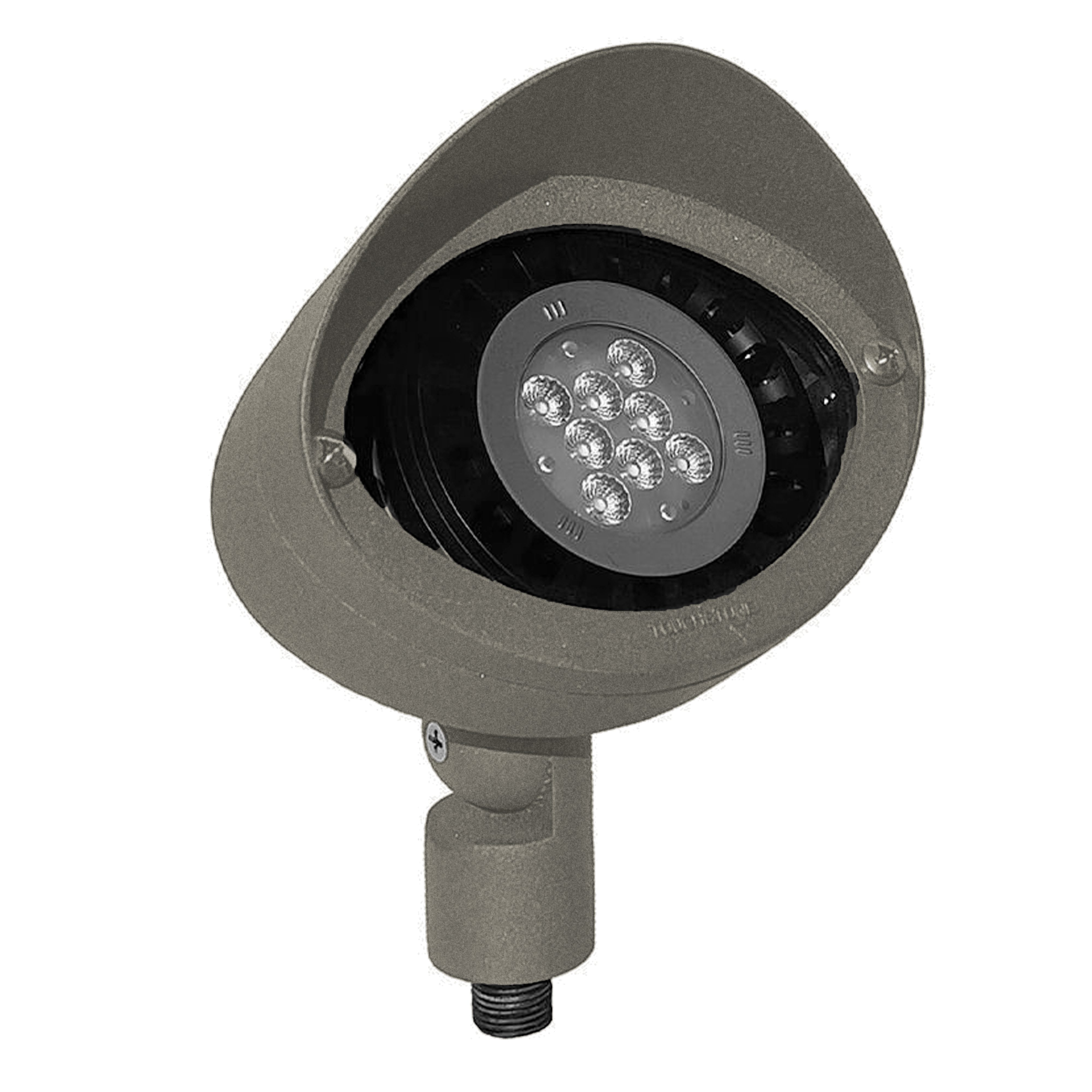

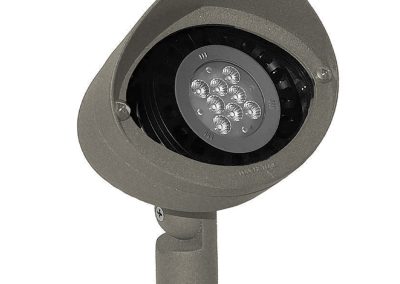

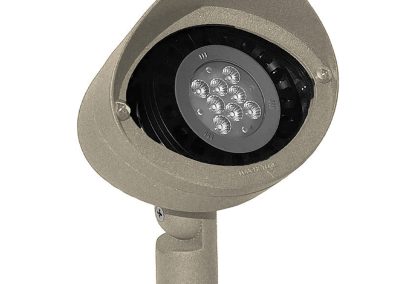

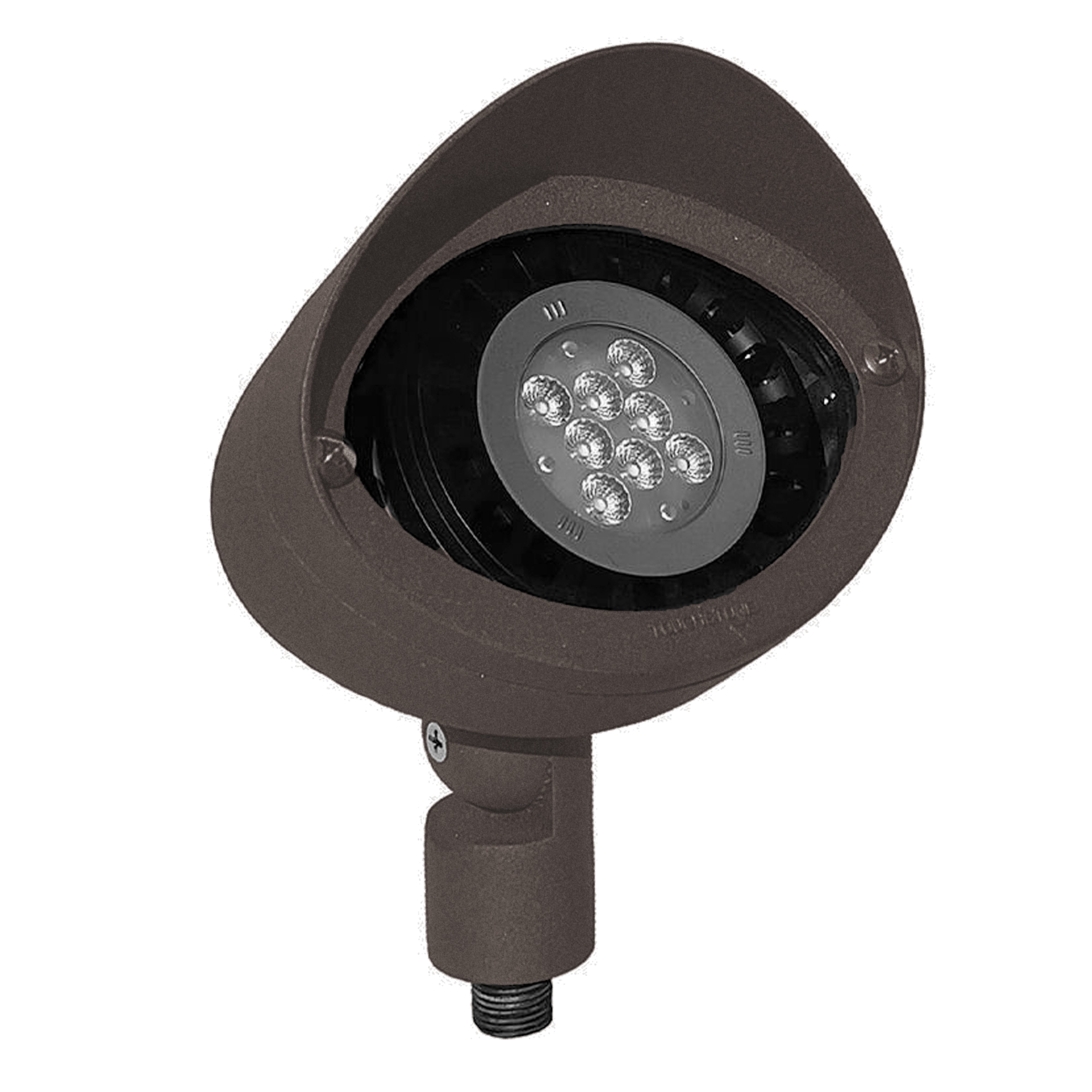

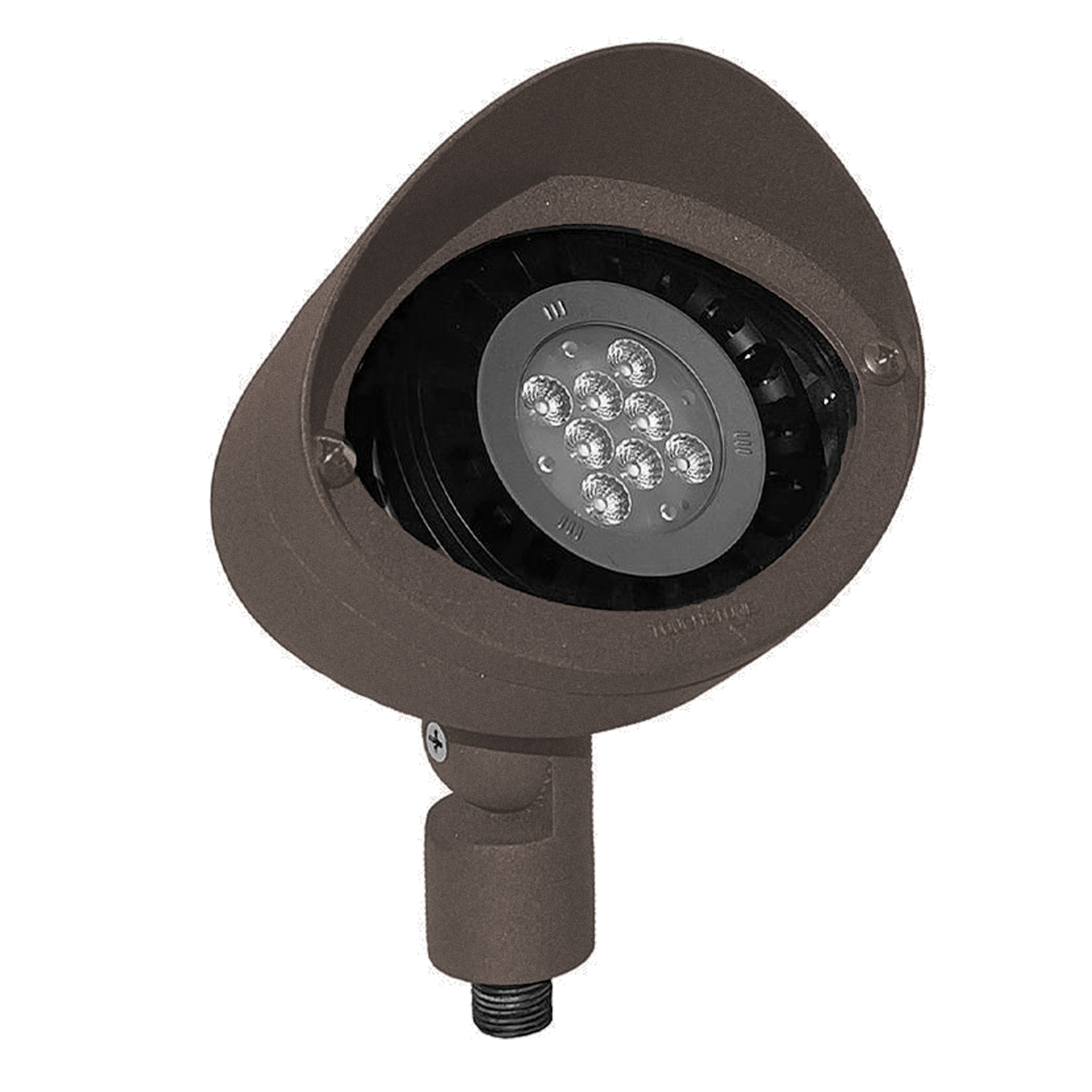

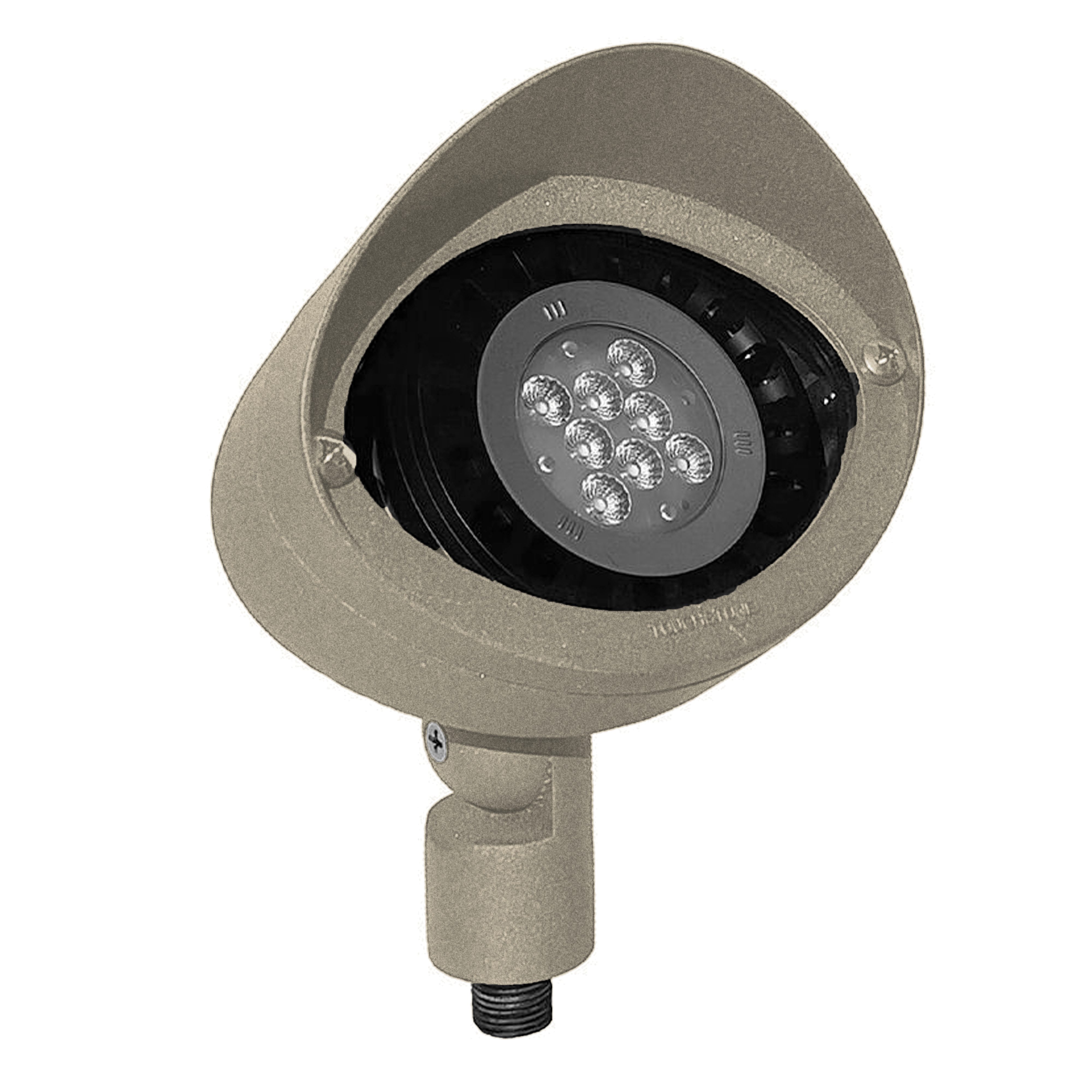

MaxFlood Series – A236 Sculpture and Artwork Lighting
The MaxFlood Series is great for uplighting large trees, large architecture, signage, and sculptures. Allows for use of our PAR36 ColorChange WRGBLED option.
Warranty: Lifetime Housing
Dimensions: 6-1/4″ w x 4-1/2″ h (Oval shaped)
3″ tall x 6-1/2″ long
MaxFlood Series Features:
- 12 volt AC/DC
- IP65 / Waterproof
- Compatible with Dimmer Switch
- Bluetooth controlled as a group or individually (with color change LED’s only)
- Solid Brass with aged patina and powder coat
- Stainless steel fasteners
- 8″ SuperStake- it is recommended you upgrade to the 12″ superstake for this fixture due to it’s weight.
- 18/2AWG, 36″ fixture leads
- Flat glass lens
- 10w or 17w w PAR36 LED
- 10w/500lm 2700k, 17w/980lm 2700k or 17w 1150lm 4000k for flag poles
- Silicone Gaskets, seals, and bug plug
- Operating voltage 12v-13v
- Accepts 1/2 NPT hardware
